8 Things You Need to Know While Choosing the UHF RFID Module

Author：2025-07-15 17:02:42

If you're planning to implement a UHF RFID system for your business, factory, or supply chain, choosing the right UHF RFID module is very important. The UHF (Ultra High Frequency) RFID module is the heart of any RFID system. It controls communication between RFID tags and the host system. But not every module is the same. The wrong choice can cause performance issues, wasted money, and poor results.

In this blog, we will cover the 8 most important things you must check before buying a UHF RFID module. Whether you're new to RFID or an experienced engineer, these tips will help you make a smart decision.

1. Determine the Application Environment

Before buying a Long range UHF RFID module, you must know where and how it will be used. Will it be used indoors or outdoors? Will the environment be hot, cold, dusty, or humid? Is the system fixed or mobile (such as handheld RFID readers)?

Knowing the operating environment helps you choose a module that can work properly in those conditions. For example, outdoor environments require waterproof and temperature-resistant modules, while mobile applications need compact and low-power modules.



2. Evaluate the System Value

Don’t just look at the price. Think about the overall value the module will bring to your system. This includes:

· Performance

· Durability

· Return on Investment (ROI)

· Future scalability

A cheap module might not offer good performance, while a slightly more expensive one may last longer and work better with your business growth.

Ask yourself: Will this module help improve my process, save time, and reduce errors?



3. Select the Right Antenna

The RFID module and antenna work together. A bad antenna can limit the module’s performance, no matter how good the module is. Make sure to select an antenna that:

· Matches the module’s frequency range (usually 860–960 MHz for UHF)

· Has the right radiation pattern (circular or linear)

· Supports the required read range

If your application needs long-range reading, pick an antenna with higher gain. For reading in small spaces or near metal, special antennas are needed.



4. Power Control and Multimode Capabilities

A good UHF RFID module should allow you to adjust the power output. Why? Because in different environments, you may need more or less power.

For example:

· Low power for short-range reading (to avoid reading nearby tags)

· High power for long-range reading

Also, check if the module supports multi-mode operation. This means it can work in continuous read, triggered read, or standby mode, depending on your needs.



5. Reading Distance and Power Gain

The reading range of the module is one of the most important factors. Some modules can read up to 1–15 meters, depending on antenna and tag type.

Also, consider the gain—which means how well the module can boost the signal strength. Higher gain helps detect weak tag signals and gives you reliable performance, even in difficult conditions.

So always match the reading range and gain to your specific application. Don’t overpay for long-range if you only need short-range reading.



6. Interface and Compatibility

Make sure the RFID module can connect easily to your current system. Different modules come with different interfaces, such as:

· UART (Serial)

· SPI

· USB

· Ethernet

Check what interface your microcontroller, PC, or PLC supports. Also, confirm whether the module is compatible with your existing software or middleware.

Choosing the right interface ensures easy integration, less development time, and smooth operation.



7. Regulatory Compliance

RFID systems operate on radio frequencies, so you must follow your country’s regulations. For example:

· FCC compliance is required in the USA

· ETSI is required in Europe

Using a non-compliant RFID module can lead to legal problems, interference issues, or import restrictions.

Always check if the RFID module is certified for your region. Look for compliance labels or certificates from the seller or manufacturer.



8. Environmental Factors

Last but not least, consider the environmental protection level of the module. If you plan to use the module in a harsh environment, make sure it can handle:

· Dust and dirt

· Water or moisture

· Vibration or shock

· Electromagnetic interference (EMI)

Look for modules with IP ratings (e.g., IP65, IP67) to ensure durability. For industrial use, rugged and shielded modules are best.

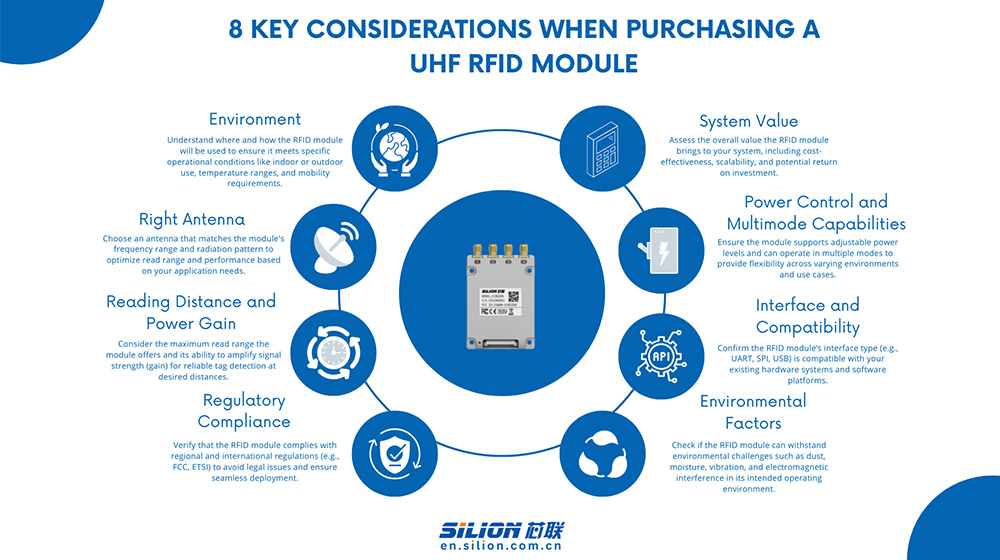

Choosing the right Ultra High Frequency RFID module is critical for building a reliable and efficient RFID system. By keeping these 8 key factors in mind—application environment, system value, antenna selection, power control, reading range, compatibility, compliance, and environmental durability—you can avoid mistakes and get the best results for your investment.

RFID technology is growing fast, and making the right choice today will benefit your business for years to come.
