How It Works: The Science Behind RFID and Bluetooth Integration

Author:2025-09-30 12:00:00

In the world of logistics, retail, and asset management, efficiency is king. For years, Radio-Frequency Identification (RFID) has revolutionized how businesses track inventory by enabling rapid, non-line-of-sight scanning of multiple items. But what happens when you combine this powerful technology with the universal connectivity of Bluetooth? The result is a new generation of portable, flexible, and highly efficient tools.

This article delves into the technical aspects and internal workings of an RFID Bluetooth reader, exploring the synergy between two distinct wireless communication protocols.





The Core: RFID and Its Technical Components

At its heart, an RFID system is a marvel of radio frequency engineering. It consists of three primary components:

1. RFID Tags: These are the passive or active devices attached to the items you want to track. They contain a microchip (an integrated circuit or IC) and a tiny antenna. Passive tags, the most common type, have no internal power source; they are powered by the very radio waves transmitted by the reader.

2. RFID Reader (Interrogator): This is the device that "interrogates" the tags. It sends out radio waves to energize the tags and receives the data they send back. A key component of the reader is its antenna, which is meticulously designed to transmit and receive these radio signals.

3. Host Device: This is the computer, smartphone, or tablet that processes the data collected by the reader.

The Technical Dance of an RFID Reader

When you press the scan button on an RFID readera series of complex, high-speed events unfolds:

· RF Signal Emission: The reader’s internal RF module generates a powerful radio signal at a specific frequency (e.g., Ultra High Frequency or UHF in the 860-960 MHz range). This signal is amplified and transmitted through the reader's antenna.

· Tag Activation: As the radio waves wash over a passive tag within range, the tag's antenna captures this energy. The captured energy is rectified by a small on-board circuit, providing just enough power to wake up the IC chip.

· Data Backscatter: Once powered, the tag doesn't transmit its own signal. Instead, it modulates the reader's incoming signal by changing its load impedance. This creates a reflected signal, a process known as backscatter modulation. This modulated signal contains the tag's unique ID and any other stored data.

· Signal Reception and Demodulation: The reader's antenna receives this faint, modulated backscatter signal. The reader's RF module then demodulates the signal, filtering out the carrier wave to extract the encoded digital data.

The Bluetooth Bridge: Bridging the Gap

This is where the integration of Bluetooth comes into play. The RFID reader itself is a powerful data collector, but it needs a way to transmit that data to a host system for processing, storage, and analysis. This is a task for which Bluetooth is perfectly suited.

The Role of the Bluetooth Module

After the RFID module successfully reads the tag data and a microcontroller processes it, it is then transferred to a dedicated Bluetooth module. This module's job is to:

1. Pairing: Establish a wireless connection with a host device, such as a smartphone, tablet, or PC. This is typically done through a one-time pairing process, a handshake governed by a specific Bluetooth profile (e.g., SPP for Serial Port Profile or a custom GATT profile for Bluetooth Low Energy).

2. Data Transmission: The Bluetooth module takes the processed RFID data (e.g., a simple string of EPC codes) and transmits it wirelessly to the paired host device.

3. Low Power Consumption: Modern RFID Bluetooth readers often utilize Bluetooth Low Energy (BLE), a protocol designed for short-range communication with minimal power consumption. This is a critical feature that allows the portable reader to operate for an entire workday on a single battery charge.

The data is then received by a software application on the host device, which can be an inventory app, a database, or a custom program. This application then takes the raw tag data and translates it into meaningful information—an inventory count, an updated asset list, or a record of a scanned item.

Technical Protocols and Standards

For this entire process to work seamlessly, both the RFID and Bluetooth components must adhere to strict technical standards.

· RFID Protocols: The most widely adopted standard for UHF RFID is ISO 18000-6C, also known as EPCglobal Gen2. This protocol defines the precise communication rules between the reader and the tags, including the commands for inventory, reading, and writing data, as well as the anti-collision algorithm. This algorithm is a sophisticated technical feat that allows a reader to quickly and accurately identify and read dozens or even hundreds of tags in its field at the same time, preventing them from "shouting" over each other.

· Bluetooth Profiles: On the communication side, Bluetooth operates on a set of standardized profiles. The most common for data transfer are the Serial Port Profile (SPP) for traditional Bluetooth and the Generic Attribute Profile (GATT) for Bluetooth Low Energy (BLE). These profiles ensure that the reader and the host device "speak the same language," allowing for reliable and secure data exchange.



Cost-Effective

Compared to traditional handheld terminals, the Bluetooth reader SQR5105 comes at a lower price point. By simply pairing it with a smartphone or tablet, users can avoid the need for expensive dedicated devices, thereby effectively reducing the overall implementation costs of the project.



Case Study: SILION TECH's BLUETOOTH RFID Reader SQR5105

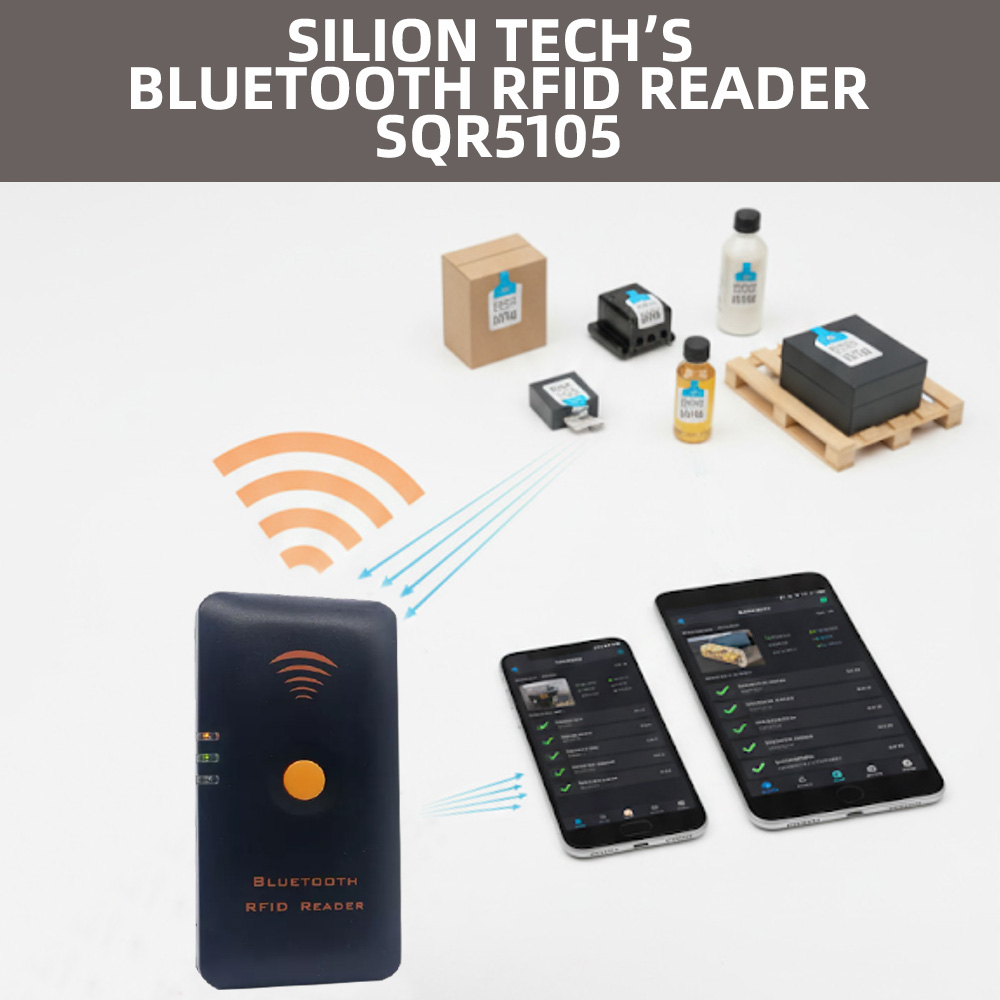

The SILION TECH Bluetooth RFID Reader SQR5105 is a prime example of this technology in action.

· Protocol Compliance: The SQR5105 conforms to the ISO18000-6C & EPC Class1Gen2 protocols, ensuring its ability to work with a vast array of standard UHF RFID tags. This compliance guarantees reliable performance in real-world applications where tag types may vary.

· Bluetooth Connectivity: It communicates with Bluetooth-enabled devices, such as Android phones (4.3 or higher) and iOS devices, via Bluetooth mode. This is the bridge that allows for convenient control of the reader and real-time data collection, which is then transmitted back to the user's personal terminal for subsequent processing.

· Performance and Design: The SQR5105 is designed for portability and efficiency. Its refined and compact appearance is paired with excellent work performance. This makes it highly suitable for applications requiring on-the-go data collection, such as traceability system management, commodity anti-counterfeiting, and equipment asset management, where a streamlined workflow is critical.
