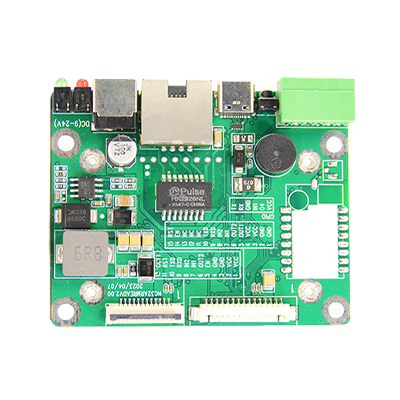

The SLD1010 is a development board designed to facilitate the testing of RFID modules and the assembly of complete machines. Products in this series feature an industrial-grade design. This development board can be directly connected to a variety of modules, including SIM7100, SIM7200, SIM7300, and others. It provides Type-C, RS-232, and TCP/IP communication interfaces, along with a 1-input, 1-output GPIO port. The GPIO port has strong driving capability, enabling direct connection to external devices such as indicator lights and alarms. Based on this development board, users can easily evaluate the performance of RFID modules. It can also be paired with a housing to form a fixed reader—boasting a compact structure, easy installation, and stable performance, making it suitable for various industrial application scenarios. Additionally, it simplifies testing operations such as GPIO control, reset, and power-on management. The development board operates on a 9-24V power supply. For an external power supply, please use the matching power adapter (12V/2A).

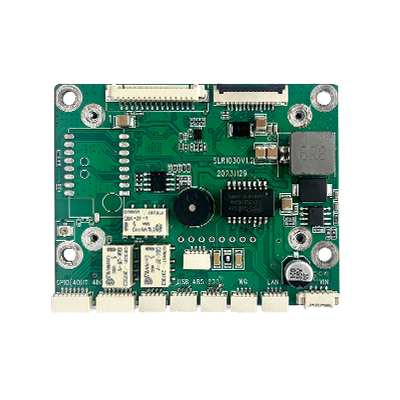

The SLD1030 is a development board designed to facilitate the testing of RFID modules and the assembly of complete machines. Products in this series adopt an industrial-grade design. This development board can directly connect to various modules, including SIM7100, SIM5100, and SIM3100. It provides USB, RS232, and TCP/IP communication interfaces, as well as 4-input-4-output GPIO ports (3 of which are relay outputs). With strong driving capability, it can directly power external devices such as indicator lights and alarms. Based on this development board, users can easily evaluate the performance of RFID modules. It can also be paired with a housing to form a fixed reader—featuring a compact structure, easy installation, and stable performance, making it suitable for various industrial application scenarios. Additionally, it simplifies testing operations such as GPIO control and power-on management. The interface board operates on a 9-24V power supply. For external power supply, please use the matching power adapter (either 9V/3A or 12V/2A).

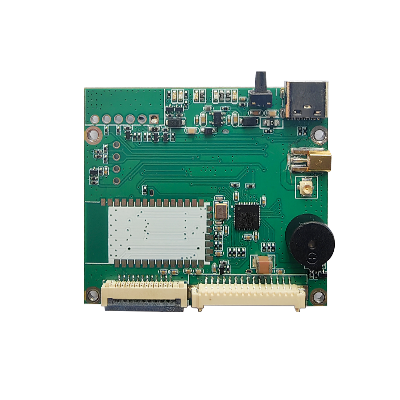

The SLD1040 is a development board designed to facilitate the testing of RFID modules and the assembly of card issuers. Products in this series adopt an industrial-grade design. This development board is compatible with all series of SILION TECH's RFID modules. The SLD1040 provides communication interfaces such as USB, RS232, and Bluetooth. It is equipped with a 1-input-1-output GPIO port, which has strong driving capability and can directly power external devices like indicator lights and alarms. Based on this development board, users can easily evaluate the performance of RFID modules. It can also be paired with a housing to form a card reader—boasting a compact structure, easy installation, and stable performance, making it suitable for various industrial application scenarios.
Based on Impinj E310 reader chip, the micro-size UHF RFID module SIM3800 has external dimensions of only 16.3 mm × 16.3 mm. Its Surface Mounted Devices (SMD) form factor allows for rapid and seamless integration; the maximum RF output power is 27 dBm. It is suitable for PDA and desktop RFID devices.
The UHF high-performance module SIM9100 is based on the next-generation Impinj E910 RAIN RFID reader chip, designed for high-performance RFID handheld devices and mobile readers. The SIM9100 module provides an MMCX antenna interface that supports RF output up to 33 dBm. The module's high sensitivity, small size, great RF performance, and advanced anti-jamming design make it a preferred choice for mobile devices.
The 16-port RFID module SIM5400 is based on the next-generation Impinj E510 RAIN RFID reader chip. The SIM5400 module can be used for multiple antenna time-sharing applications; when the 8dBi antenna is used, the reading distance is more than 12 meters; the excellent multi-label anti-collision algorithm, the inventory is more than 600tags/s; the large-area aluminum alloy thermal conductive panel is used. Excellent heat dissipation.
The 8-port RFID module SIM5300 is based on the next-generation Impinj E510 RAIN RFID reader chip. The SIM5300 module can be used for multiple antenna time-sharing applications; when the 8dBi antenna is used, the reading distance is more than 12 meters; the excellent multi-label anti-collision algorithm, the inventory is more than 600tags/s; the large-area aluminum alloy thermal conductive panel is used. Excellent heat dissipation.
The UHF high-performance module SIM5200 is based on the next-generation Impinj E510 RAIN RFID reader chip, designed for high-performance RFID devices and fixed readers. The SIM5200 module provides four SMA antenna ports that support RF outputs up to 30dBm. The module's high sensitivity, good RF performance, and advanced anti-jamming design make it a preferred choice for fixed RFID devices.
The UHF RFID module SIM5100 is based on Impinj E510 RAIN RFID reader chip, designed for RFID handheld devices and mobile readers. The SIM5100 module provides an MMCX antenna interface that supports RF output up to 30 dBm. The module's small size, good RF performance, and advanced anti-jamming design make it a preferred choice for mobile devices.
